Compact in size, effortless to use, and built to last—this device delivers reliable performance with minimal fuss, making it the perfect choice for straightforward, everyday applications.
KATflow 100

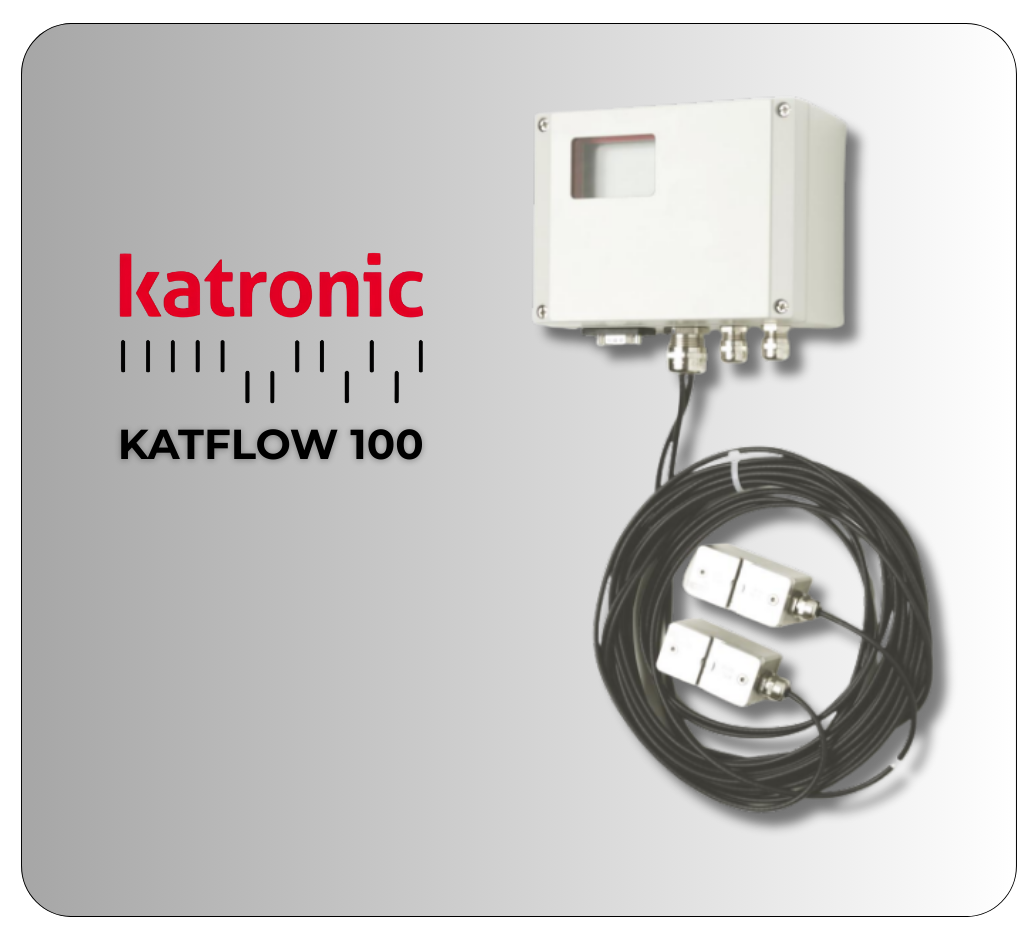

The KATflow 100 is a compact, clamp-on ultrasonic flow transmitter engineered for permanent installation and reliable flow measurement on individual pipes. Its durable and practical design, combined with a streamlined specification and a versatile selection of transducer types, makes it a cost-effective solution for a wide range of applications.
The KATflow 100 electronics are housed in a robust wall or pipe mounted aluminium enclosure and can be powered by AC or DC power supplies. In spite of its relative simplicity the KATflow 100 offers the user a wide range of input, output and communication interfaces such as RS 485, Modbus and the more traditional 4-20mA and open-collector pulse. As a special solution the KATflow 100 can be offered without local display with a hand-held programming device.
Features
- Low cost of ownership
- Multiple input and output options available
- PT100 inputs for heat quantity (thermal energy) measurement
- Bi-directional measurement with totaliser function
- Innovative installation wizard for quick and intuitive programming
- Configuration can be changed to suit customer requirements
Specifications
- Pipe diameter range 10 mm to 3,000 mm
- Temperature range for sensors -30 °C to +80 °C (-22 °F to +176 °F)
- Weight 750 g
- Robust IP 66 aluminium enclosure
- Sturdy unit with LCD display and five-key keypad
- Wall or pipe mounted
Applications
Pharmaceutical
- Water for injection measurement
- Measurement of sterile fluids
- Clean room applications
Building Services
- Installation on hot water lines
- Energy flow measurement
- Installation on chilled water systems
Water and Wastewater
- Replacement of electromagnetic flowmeters
- Drinking water and effluent measurements
- Pump testing
Aircraft and Aerospace
- Monitoring of hydraulic systems
- Use in landing gear test benches
- Measurement of specialist media
Marine and Shipbuilding
- Measurement of engine cooling lines
- Monitoring of sea water inlets
- Heavy fuel oil measurements
General Industry
- Automated process control
- Large scale metering projects
- Measurement of steam condensate
