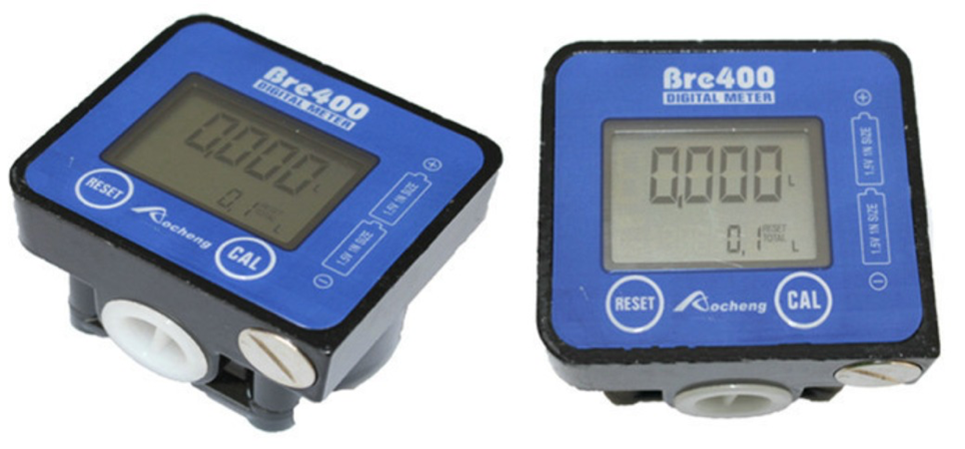

BRE400
Electronic oval gear flowmeter is used to control and measure low flow, high viscosity liquid media such as diesel, gasoline, kerosene, engine oil and other lubricants.
- Inlet and outlet: BSPF1/2″
- Specifications: 78mm*68mm*58mm
- Measuring accuracy: ±0.5%
- Repeatability: ±0.2%,
- Maximum working pressure: 70BAR
- Working voltage: 2×1.5V
- Standby time: 2 years
- Flow range: 2-30L/min
- Single count: 0.000-9999.9
- Total cumulative count: 0.00-99999.9
- Measurement unit: liter/L, gallon/GAL, pint/PTS, quart/QTS
The precision of this precision turbine oval gear is 0.8%, and the single maximum count is 9999.9L. It is accurate to 3 decimal places below 99.999 liters of small flow. The precision of small flow is automatically carried forward to display the value, and the accurate count value is maintained. The single-shift accumulation can be cleared, and the total accumulation is always stored in the memory.
Pay attention to the cleanliness of the oil during normal use. The oil must be filtered with an effective filter, otherwise it will be unreasonable to use any refueling gun or metering machine. If it is not equipped, it can also be installed.
