KATflow 170

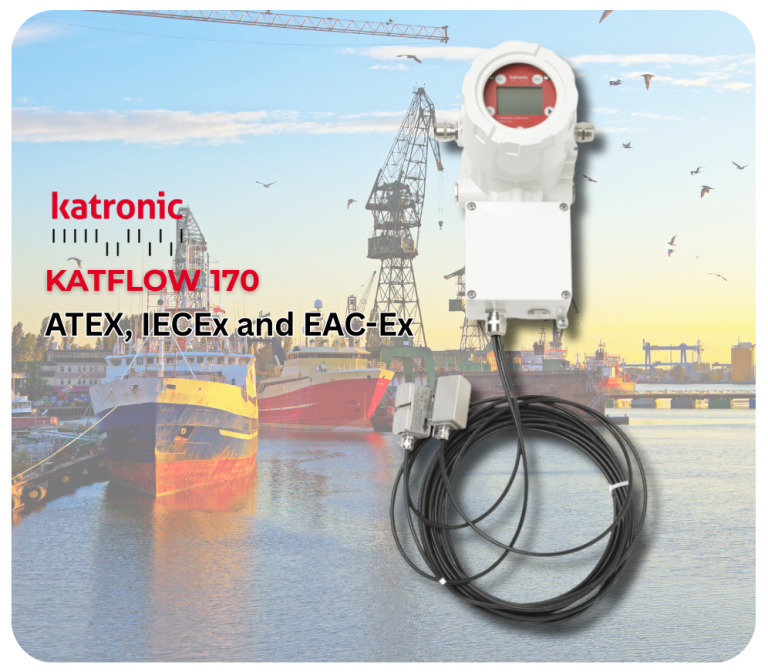

The KATflow 170 flowmeter is designed around a choice of explosion-proof housings available in either offshore industry compliant epoxy-coated copper-free aluminium, or stainless steel. The instrument is extremely easy to use and is programmed with a magnetic pen and a glass-fronted keypad for increased safety. The robustness and reliability of the KATflow 170 is further enhanced by its encapsulated IP 68 transducers which are manufactured from stainless steel and have a sturdy cable conduit.
For applications where harsh environmental conditions demand a more rugged instrument, the KATflow 170 provides a corrosion-resistant option as part of a fully ex-certified package. The flowmeter is intended for permanent operation in Zone 1 and 2 hazardous areas and is an economical choice for a variety of metering applications. The KATflow 170 demonstrates that even the most complex technical requirements can be met with straightforward solutions.
This explosion-proof clamp-on ultrasonic flowmeter is purpose-built for hazardous industrial environments, offering non-intrusive flow measurement without pipe penetration or process interruption. Its rugged aluminum or stainless steel housing resists corrosion, vibration, and extreme temperatures, while advanced signal processing ensures stable, accurate readings—even on challenging pipe materials or under variable flow conditions. Certified for use in explosive atmospheres (e.g., ATEX, IECEx), it delivers long-term reliability with minimal maintenance, making it ideal for oil & gas, chemical, and power generation applications.”
FEATURES
- Dual flow monitoring with sum, average, difference and maximum calculations
- IP 68 stainless steel sensors as standard
- Optional current inputs for pressure, temperature and density compensation
- Up to 100,000 measurement data logger and software for sampling and data transfer
- Process output options current, open-collector, relay
- Ex-certified Pt 100 probe for temperature compensation
SPECIFICATIONS
- Pipe diameter range 10 mm to 3,000 mm
- Temperature range for sensors -50 °C to +115 °C (-58 °F to +239 °F)
- Robust IP 66 unit with LCD display and glass-fronted keypad
- Epoxy-coated aluminium or stainless-steel enclosure
- Magnetic pen for safe and easy programming
- Measurement of two flows simultaneously
APPLICATIONS
Oil and Gas
- Oil blending skids
- Produced water measurements
- Methanol and water injection systems
- Product recognition and interface detection systems
- Coiled tubing systems
Petrochemical
- Measurement of refined products
- Measurement of corrosive or toxic chemicals
- Boiler feedwater measurements
Marine and Shipbuilding
- Tanker unloading systems
- Fire suppression systems
Water and Wastewater
- Effluent measurement in hazardous areas
General Industry
- Distillery process measurements
- Automated process control
- Production chemical measurements in hazardous areas
